Four Wheel Mining Wagon UK-3
Home » Products » Mining Wagon/Underground Dump Truck » Four Wheel Mining Wagon » Four Wheel Mining Wagon UK-3

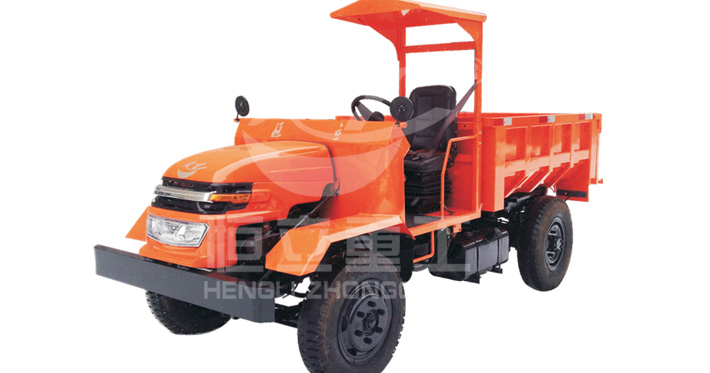

Four Wheel Mining Wagon UK-3
Send Message

Name: Underground Mining Wagon UK-3

Mining exclusive model ≤ 15°

Introduction of Four Wheel Mining Wagon UK-3:

Four wheel mining wagon UK-3 features:

Strong Power;

Reliable Braking;

Strong Driving Force;

Energy-saving and Cost-reducing;

Convenient Maintenance;

Parameters of Four Wheel Mining Wagon UK-3:

Item

Unit

UK-3

Rated load capacity

t

3

Loading cability

m³

1.5

Diesel engine (Model/power)

kw

Water-cooled, low pollution 28.6

Maximum driving speed

km/ h

23

Maximum gradeability

( º )

12

Maximum tractive force

KN

42

Adaptive turning radius

m

3.77 (inner) 6.1 (outer)

Loading height

mm

1440

Unloading maximum height

mm

2400

Unloading angle

( º )

40

Minimum ground clearance

mm

205

Overall machine weight

t

2.1

Inside dimensions (length x width x height)

mm

2760 x 1550 x 600

Customer customization

Outline dimension (L × W × H)

mm

4810 x 1800 x 2200

Note: The above-mentioned parameters may change. Please refer to product specifications for the final parameters.
