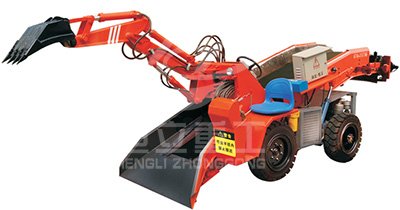

Haggloader, Wheel Mucking Loader LWT-80 / 2Q-CD
Name: Haggloader, Wheel Mucking Loader Enhanced Type LWT-80 / 2Q-CD
Model: LWT-80 / 2Q-CD
Special model of level roadway series ≤8°
Introduction of Wheel Mucking Loader Enhanced Type LWT-80:
This LWT- 80 / 2 Q enhanced wheel mucking loader is applicable to tunnels whose sections are above 2 × 2.2 m, with the maximum working gradient of 8°.
Parameters of Wheel Mucking Loader Enhanced Type LWT80:
| Item | Unit | LWT- 80 / 2 Q- CD (Enhanced Type) | |
| A Grilled get width | mm | 2830 | |
| B Grilled distance | mm | 1550 | |
| C Grilled take height | mm | 1920 | |
| D Grilled to take deep | mm | 300 | |
| E Unloading height | mm | 1700 (Can be heightened) | |
| F Min. dumping height | mm | ||
| G Unloading distance | mm | 1700 (Can be lengthened) | |
| H Maximun swivel arm | ( º ) | ±35 | |
| Adapt road way lift of section (width × height) | m | ≥2.2 × 2.2 | |
| Vehicle weight | kg | 3280 | |
| Load capacity | m3/ h | ≈80 | |
| Walking speed | km/h | 3 | |
| Adapt to the roadway slope | ( º ) | ≤8 | |
| Grade ability | ( º ) | ≤15 (hardstand) | |
| Minimum turning radius | m | 4.5 | |
| Rated working pressure | Mpa | 12.5 | |
| Minimun clearance | mm | 220 | |
| Motor power | kw | 16.5 ( 15 ) | |
| Leather belt speed | m/min | 48 | |
| Wheelbase | mm | 1610 | |
| Wheel distance | mm | 1480 | |
| Largest mineral aggregate by size (width × height) | mm | 600 × 480 | |
| Dimension | Length | mm | 5600 |
| Width | mm | 1700 | |
| Height | mm | 1570 | |
Note: The above parameters are for reference only, and may differ from the actual parameters.

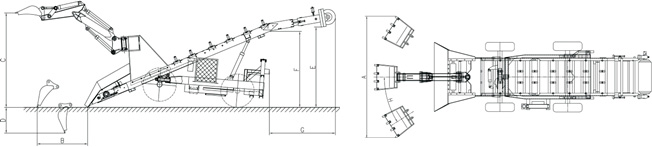

Operation Schematic Diagram:

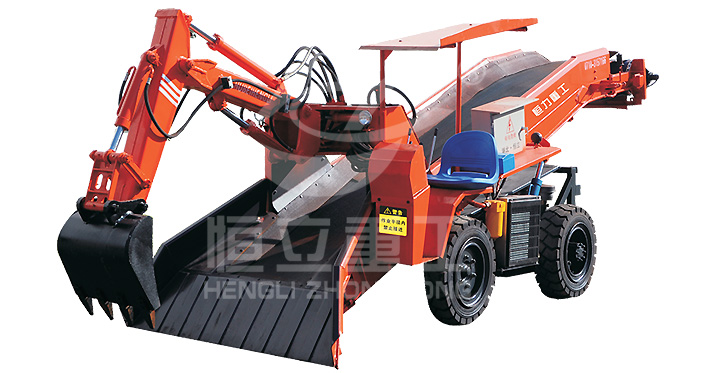

Haggloader, Wheel Mucking Loader LWT- 50 / 4Q-XXX-DWheel excavation loader is a high-efficiency mining device capable of continuous production. It is mainly used for mining operations in narrow caves, e.g. metal mine, diversion tunnel, etc. Its function is to collect the gravel soil of various projects...
