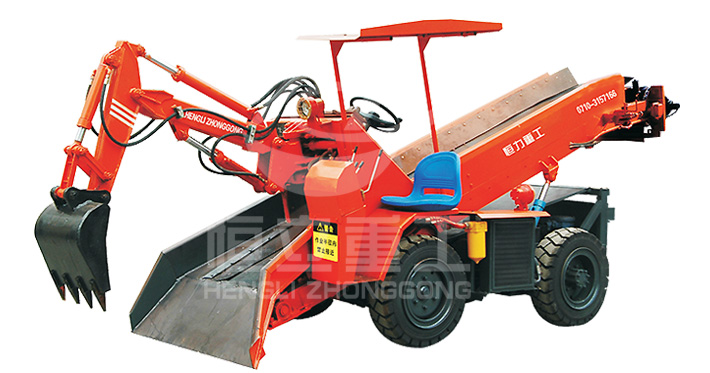

Haggloader, Wheel Mucking Loader LWT-80 4Q-CD
Name: Haggloader, Wheel Mucking Loader Standard Type LWT-80 / 4Q-CD
Model: LWT- 80 / 4Q-CD
Special model of level roadway series ≤8°
Introduction of Wheel Mucking Loader Standard Type LWT-80:
LWT-80/4Q standard wheel mucking loader is applicable to tunnels whose sections are above 2 × 2.1 m, with the maximum working gradient of 20°. Its power is from a motor.
Parameters of Wheel Mucking Loader Standard Type LWT80:
| Item | Unit | LWT-80 / 4Q-CD (Standard Type) | |
| A Grilled get width | mm | 2700 | |
| B Grilled distance | mm | 1300 | |
| C Grilled take height | mm | 2020 | |
| D Grilled to take deep | mm | 350 | |
| E Unloading height | mm | 1780 (Can be heightened) | |
| F Min. dumping height | mm | 1750 | |
| G Unloading distance | mm | 2000 (Can be lengthened) | |
| H Maximun swivel arm | ( º ) | ±35 | |
| Adapt road way lift of section (width × height) | m | ≥2.2 × 2.1 | |
| Vehicle weight | kg | 3180 | |
| Load capacity | m3/ h | ≈80 | |
| Walking speed | km/h | High speed 5.5 / Low speed 3 | |
| Adapt to the roadway slope | ( º ) | ≤8 | |
| Grade ability | ( º ) | ≤15 (hardstand) | |
| Minimum turning radius | m | 5 | |
| Rated working pressure | Mpa | 12.5 | |
| Minimun clearance | mm | 220 | |
| Motor power | kw | 16.5 ( 15 ) | |
| Leather belt speed | m/min | 48 | |
| Wheelbase | mm | 1650 | |
| Wheel distance | mm | 1480 | |
| Largest mineral aggregate by size (width × height) | mm | 600 × 450 | |
| Dimension | Length | mm | 5600 |
| Width | mm | 1700 | |
| Height | mm | 1690 | |
Note: The above parameters are for reference only, and may differ from the actual parameters.
