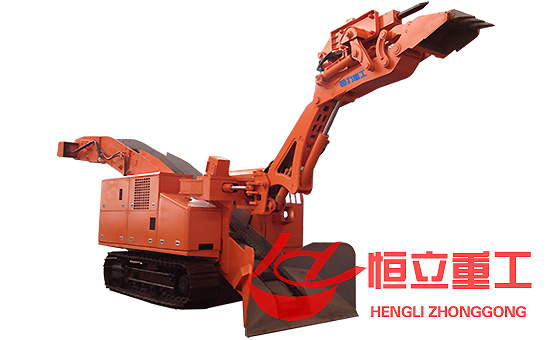

Name: Haggloader, Mucking Loader with Three Arm and Hammer
Crawler crushing & digging integrated mucking loader
Mucking Loader with Three Arm and Hammer is a new mining device and laneway device that the company has developed for repairing laneway, applicable to laneways with a section of over 3.2×3.2 meters. A bucket and a hammer are designed on the working arm of this style of mucking loader, with the performance of mucking loader, capable of saving the interchange time of bucket and hammer, applicable to laneway repairs involving a big crushing capacity and a small loading capacity. This mucking loader enjoys such advantages as compact structure, high operating efficiency, low energy consumption, and crushing & loading integration.
Item |
Unit |
Belt Crawler Mucking Loader LWT- 60 |
|
A Grilled get width |
mm |
2700 |
|
B Grilled distance |
mm |
1300 |
|
C Grilled take height |
mm |
2020 |
|
D Grilled to take deep |
mm |
350 |
|
F Unloading height |
mm |
1750 |
|
G Unloading distance |
mm |
2000 |
|
Vehicle weight |
kg |
3180 |
|
Load capacity |
m2 h |
≈60 |
|
Leather belt speed |
m/ min |
48 |
|
Driving speed |
km/ h |
High speed 5.5/Low speed 3 |
|
Ground clearance |
mm |
220 |
|
Tracked the inside width |
mm |
1100 |
|
Wheelbase |
mm |
|
|
Rated working pressure |
Mpa |
12.5 |
|
Motor power |
kw |
30 |
|
Adapt to the roadway slope |
( º ) |
≤15 |
|
Gradeability |
Mpa |
≤15 (hardstand) |
|
Minimum turning radius |
m |
5 |
|
Maximum material crossing size |
mm |
600x450 |
|
Minimum fault surface of suitable tunnel |
m |
2.2x2.3 |
|
Dimension |
Length |
mm |
5300 |
Width |
mm |
1700 |
|
Height |
mm |
1700 |
|
Note: The above-mentioned parameters may change. Please refer to product specifications for the final parameters.
