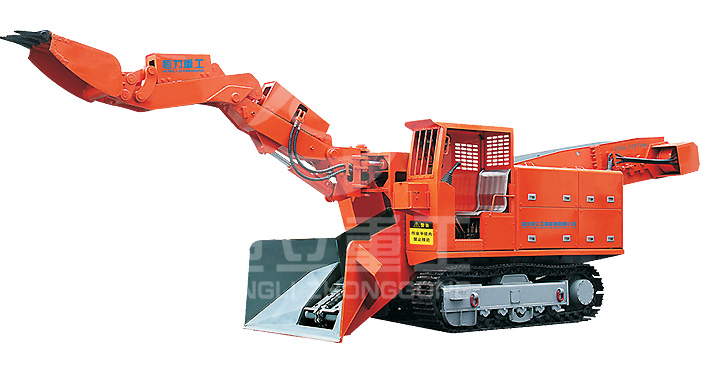

Name: Haggloader, Crawler Mucking Loader LWL- 100 45L
Large gradient special model≤32°
LWL- 100 / 45 L crawler mucking loader is applicable to tunnels with a section of above 2.5X2.5 m and a gradient of ≤32°.

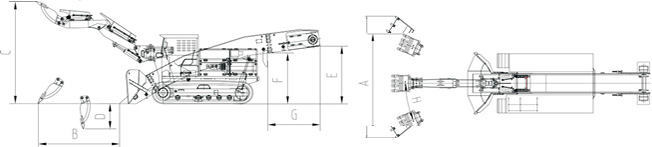

Item |
Unit |
LWL- 100 / 45L |
|
A Grilled get width |
mm |
4700 |
|
B Grilled distance |
mm |
1980 |
|
C Grilled take height |
mm |
2850 |
|
D Grilled to take deep |
mm |
550 |
|
E Unloading height |
mm |
1862 (Can be adjusted) |
|
F Unloading height |
mm |
1600 |
|
G Unloading distance |
mm |
2400 (Can be adjusted) |
|
H Maximun swivel arm |
( º ) |
±55 |
|
Adapt road way lift of section (width × height) |
m |
≥2.5 × 2.5 |
|
Vehicle weight |
kg |
11800 |
|
Load capacity |
m2 h |
≈100 |
|
Walking speed |
km/ h |
2.1 ± 5 % |
|
Adapt to the roadway slope |
( º ) |
≤32 |
|
Minimum turning radius |
m |
≥5.5 |
|
Rated working pressure |
Mpa |
≤31 |
|
Minimun clearance |
mm |
≥310 (Can be heightened) |
|
Motor power |
kw |
45 / 55 |
|
Leather belt speed |
m/ min |
40 |
|
The form of scraper transport operators |
|
Single chain single drive / double chains double drive |
|
Operating mode |
|
Driven by hydraulic motor |
|
Tracked the inside width |
mm |
1000 |
|
Largest mineral aggregate by size (width × height) |
mm |
580 × 560 |
|
Dimension |
Length |
mm |
6800 |
Width |
mm |
1900 |
|
Height |
mm |
2200 |
|
Note: The above-mentioned parameters may change. Please refer to product specifications for the final parameters.
