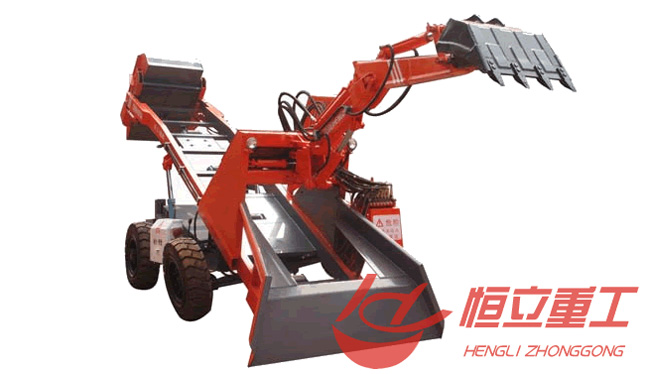

Name: Haggloader, Wheel Mucking Loader Standard Type LWT- 60 / 2Q- XC
Special model of level roadway series ≤20°
LWT-60/2Q standard wheel mucking loader is applicable to tunnels whose sections are above 2.2 × 2.7 m, with the maximum working gradient of 20°. Its power is from a motor.
Item |
Unit |
LWT- 60 / 2Q- XC |
|
A Grilled get width |
mm |
2800 |
|
B Grilled distance |
mm |
1500 |
|
C Grilled take height |
mm |
1970 |
|
D Grilled to take deep |
mm |
350 |
|
E Unloading height |
mm |
1500 (Can be heightened) |
|
F Unloading height |
mm |
|
|
G Unloading distance |
mm |
1700 (Can be lengthened) |
|
H Maximun swivel arm |
( º ) |
±35 |
|
Adapt road way lift of section (width × height) |
m |
≥2.2 × 2.7 |
|
Vehicle weight |
kg |
2750 |
|
Load capacity |
m2 h |
≈60 |
|
Walking speed |
km/ h |
3 |
|
Adapt to the roadway slope |
( º ) |
≤20 |
|
Gradeability |
Mpa |
≤15 (hardstand) |
|
Minimum turning radius |
m |
5 |
|
Rated working pressure |
Mpa |
12.5 |
|
Minimun clearance |
mm |
180 |
|
Motor power |
kw |
16.5 |
|
Wheelbase |
mm |
1580 |
|
Wheel span |
mm |
1480 |
|
Dimension |
Length |
mm |
5500 |
Width |
mm |
1700 |
|
Height |
mm |
1800 |
|
Note: The above-mentioned parameters may change. Please refer to product specifications for the final parameters.
