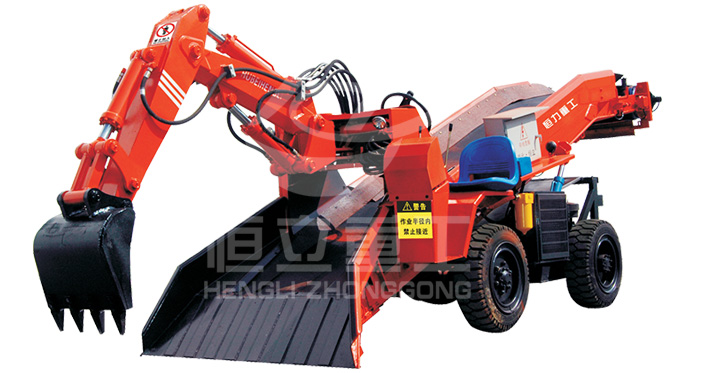

Haggloader, Wheel Mucking Loader LWT-60 4Q-XX-CD
Name: Haggloader, Wheel Mucking Loader Heavy Type LWT-60 4Q-XX-CD
Model: LWT-60 4Q-XX-CD
Special model of level roadway series ≤8°
Introduction of Mucking Loader Heavy Type LWT-60:
LWT-60/4Q heavy type wheel mucking loader is applicable to tunnels whose sections are above 2 × 2.4 m, with the maximum working gradient of 8°. Its power is from a motor and diesel.
Parameters of Mucking Loader Heavy Type LWT- 60:
| Item | Unit | LWT- 60 / 4Q-XX-CD (Heavy Type) | |
| A Grilled get width | mm | 2700 | |
| B Grilled distance | mm | 1650 | |
| C Grilled take height | mm | 2200 | |
| D Grilled to take deep | mm | 400 | |
| E Unloading height | mm | 1720 (Can be heightened) | |
| F Min. dumping height | mm | 1700 | |
| G Unloading distance | mm | 1600 (Can be lengthened) | |
| H Maximun swivel arm | ( º ) | ±35 | |
| Adapt road way lift of section (width × height) | m | ≥2.0 × 2.4 | |
| Vehicle weight | kg | 3370 | |
| Load capacity | m3/ h | ≈60 | |
| Walking speed | km/h | 3 | |
| Adapt to the roadway slope | ( º ) | ≤8 | |
| Grade ability | ( º ) | ≤15 (hardstand) | |
| Minimum turning radius | m | 4.5 | |
| Rated working pressure | Mpa | 12.5 | |
| Minimun clearance | mm | 220 | |
| Motor power | kw | 15 | |
| Leather belt speed | m/ min | 48 | |
| Wheelbase | mm | 1550 | |
| Wheel distance | mm | 1145 | |
| Largest mineral aggregate by size (width × height) | mm | 500 × 460 | |
| Dimension | Length | mm | 5150 |
| Width | mm | 1500 | |
| Height | mm | 1780 | |
Note: The above parameters are for reference only, and may differ from the actual parameters.
Operation Schematic Diagram:
Haggloader, Wheel Mucking Loader LWT-60 / 4Q-XX-CDLWT-60/4Q standard wheel mucking loader is applicable to tunnels whose sections are above 2 × 2. m, with the maximum working gradient of 8°. This wheel mucking loader uses an electric fully hydraulic transmission system, with four functions, including....
Haggloader, Wheel Mucking Loader LWT-80 / 2Q-CDThis LWT- 80 / 2 Q enhanced wheel mucking loader is applicable to tunnels whose sections are above 2 × 2.2 m, with the maximum working gradient of 8°. Special model of level roadway series ≤8°...

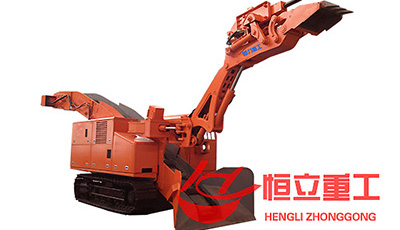

Haggloader, Crawler Mucking Loader LWL- 120 55LIntroduction of Crawler Mucking Loader LWL- 120 55L: LWL- 120 / 55 L crawler mucking loader is applicable to tunnels with a section of above 2.8X2.8 m and a gradient of ≤32°...
