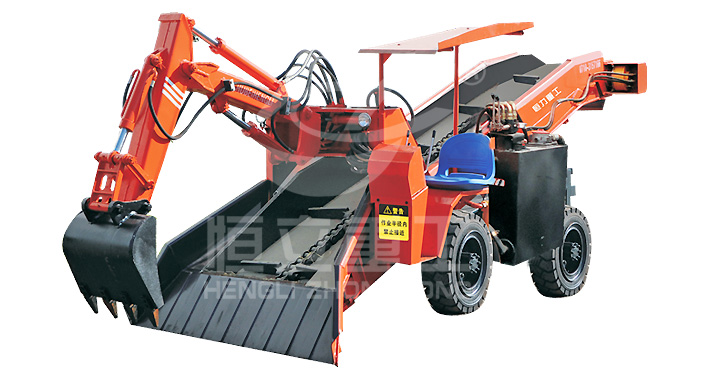

Haggloader, Wheel Haggloader LWT-60 4Q-XX-CD-GB
Name: Haggloader, Wheel Haggloader Enhanced Type LWT-60 4Q-XX-CD-GB
Model: LWT-60 4Q-XX-CD-GB
Special model of level roadway series ≤ 12°
Introduction of Wheel Haggloader Enhanced Type LWT-60:
LWT-60/4Q enhanced wheel mucking loader is applicable to tunnels whose sections are above 2 × 2 m, with the maximum working gradient of 12°. Its power is from a motor and diesel.
Parameters of Wheel Haggloader Enhanced Type LWT-60:
| Item | Unit | LWT-60 / 4Q-XX-CD-GB (Enhanced Type) | |
| A Grilled get width | mm | 2700 | |
| B Grilled distance | mm | 1600 | |
| C Grilled take height | mm | 1450 | |
| D Grilled to take deep | mm | 350 | |
| E Unloading height | mm | 1700 (Can be heightened) | |
| F Min. dumping height | mm | 1500 | |
| G Unloading distance | mm | 1650 (Can be lengthened) | |
| H Maximun swivel arm | ( º ) | ±35 | |
| Adapt road way lift of section (width × height) | m | ≥2.0 × 2.0 | |
| Vehicle weight | kg | 3900 | |
| Load capacity | m3/ h | ≈60 | |
| Walking speed | km/h | 3 | |
| Adapt to the roadway slope | ( º ) | ≤12 | |
| Grade ability | ( º ) | ≤15 (hardstand) | |
| Minimum turning radius | m | 4.5 | |
| Rated working pressure | Mpa | 12.5 | |
| Minimun clearance | mm | 180 | |
| Motor power | kw | 22 | |
| Wheelbase | mm | 1550 | |
| Wheel distance | mm | 1230 | |
| Largest mineral aggregate by size (width × height) | mm | 500 × 440 | |
| Dimension | Length | mm | 5200 |
| Width | mm | 1500 | |
| Height | mm | 1600 | |
Note: The above parameters are for reference only, and may differ from the actual parameters.
Operation Schematic Diagram:
