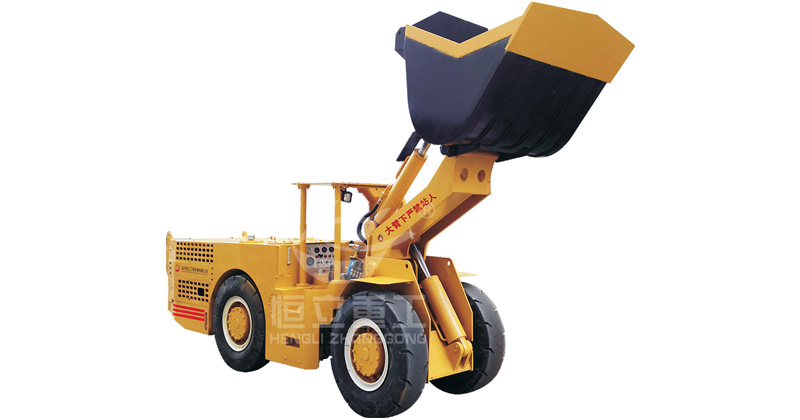

Name: Diesel LHD Loader HLWJD1.0
Mining dedicated type≤20°
Hengli is one of the professional mnaufacturer of LHD Loader/underground scooptram based in China. We designing and manufacturing underground LHD loader, underground scrapers, underground scooptrams, the company has obtained ISO 9001 International Quality Certification and has professional R&D team, advanced productivity and impeccable after-sale service network.
Underground scraper series is mainly used for loading and transporting loose materials after blasting in mine, and may also be used for railway, highway and tunnel works; it is in particular applicable to harsh working conditions, narrow operation site, low and muddy working face.
We will constantly bring first-class underground mining solutions to customers' both at home and abroad.
Index |
Unit |
HLWJ1.0 |
Rated bucket capacity |
m3 |
1 |
Rated load capacity |
t |
2 |
Max. shovl force |
kn |
45 |
Maximum tractive force |
kn |
52 |
Maximum discharge height |
mm |
1050 |
Minimum discharge length |
mm |
860 |
Maximum gradeability |
( º ) |
≤20 |
Minimum turning radius (outside/inside) |
mm |
4260 / 2540 |
Driving speed |
km/ h |
0 ~ 8 |
Ground clearance |
mm |
200 |
Cable effective length |
m |
100 |
Wheelbase |
mm |
2200 |
Overall machine weight |
kg |
6600 |

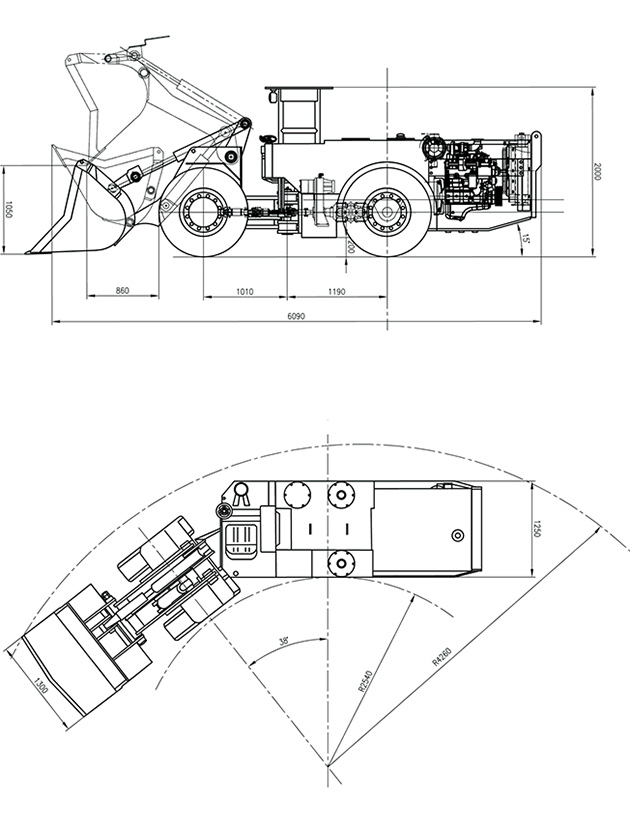

Outline dimension |
mm |
6090 × 1300 × 2000 |
Note: The above-mentioned parameters may change. Please refer to product specifications for the final parameters.
