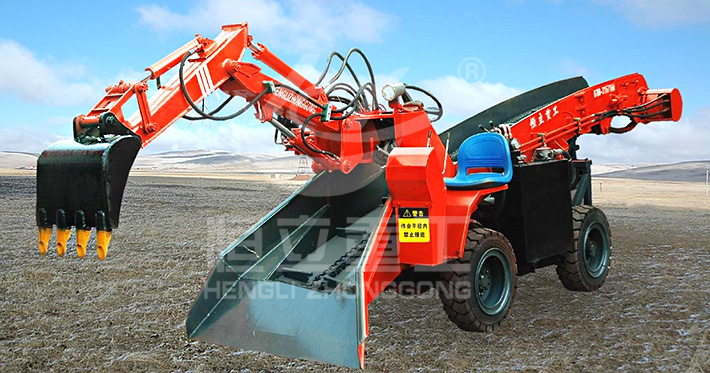

Haggloader, Wheel Mucking Loader with Scraper LWT-80/4Q-CD-G
Name: Haggloader, Wheel Mucking Loader LWT-80/4Q-CD-G
Scraper excavating mining dedicated loader (wheel loader)
Narrow size wheel mucking loader
Introduction of Wheel Mucking Loader LWT-80 4Q-CD:
LWT-80 4Q - CD-G is a special mucking loader, designed for small mine holes, with a small vehicle body, incapable of oblique mining (mine tunnels with a certain gradient). Scraper excavating mining dedicated loader (wheel loader) is applicable to tunnels whose sections are above 2.2 × 2.2 m, with the maximum working gradient of 8°.
Parameters of Wheel Mucking Loader LWT-80:
| Main technical parameter | Scraper excavating mining dedicated loader | |
| 1 | Loading capacity (m3/h) | ≈80 |
| 2 | Overall machine weight (kg) | 4025 |
| 3 | Minimum turning radius (m) | 5 |
| 4 | Mining width (mm) | 2750 |
| 5 | Mining height (mm) | 1400 |
| 6 | Mining depth (mm) | 350 |
| 7 | Mining length (mm) | 1650 |
| 8 | Unloading height (mm) | 1700 |
| 9 | Unloading length (mm) | 1700 |
| 10 | Gradeability (°) | ≈18 (hardstand) |
| 11 | Driving speed (km/h) | High speed5.5/low speed 3 |
| 12 | Ground clearance (mm) | 220 |
| 13 | Wheel span (mm) | 1480 |
| 14 | Wheelbase (mm) | 1650 |
| 15 | Rated working pressure (Mpa) | 12.5 |
| 16 | Total power of motor (kw) | 22 |
| 17 | Maximum material crossing size (mm) | 600×540 |
| 18 | Suitable tunnel gradient (°) | ≤15 |
| 19 | Minimum fault surface of suitable tunnel (m) | 2.4×2.5 |
| 20 | Outline dimension (length × width × height) (mm) | 5600 × 1700 × 1700 |
Note: The above-mentioned parameters may change. Please refer to product specifications for the final parameters.
Haggloader, Wheel Mucking Loader LWT-80 4Q-CDLWT-80/4Q standard wheel mucking loader is applicable to tunnels whose sections are above 2 × 2.1 m, with the maximum working gradient of 20°. Its power is from a motor. Special model of level roadway series ≤8°....
Haggloader, Crawler Mucking Loader LWL- 180 79LIntroduction of Crawler Mucking Loader LWL- 180 79L: LWL- 180 / 79 L crawler mucking loader is applicable to tunnels with a section of above 3.8X3.8 m and a gradient of ≤32°...
Haggloader, Mucking Loader with Three Arm and HammerIntroduction of Mucking Loader with Three Arm and Hammer: Mucking Loader with Three Arm and Hammer is a new mining device and laneway device that the company has developed for repairing laneway, applicable to laneways with a section of over 3.2×3.2...
Mining Loader HL920AIntroduction of Mining Loader HL920A: As one of the Word 500 top experienced engineering machinery enterprises, we have developed a new-type HL920A mining loader on the basis of conventional ones. This mining loader is larger than the conventional 920 mining loader, and is prominently characterized by high efficiency, flexibility, maneuvering and low price. An exhaust purification system is used for the exhaust of diesel engine...
Diesel LHD loader HLWJD1.0Hengli is one of the professional mnaufacturer of LHD Loader based in China. We designing and manufacturing underground LHD loader, underground scrapers, underground scooptrams, the company has obtained ISO 9001 International Quality...
Four Wheel Mining Wagon UK-5Introduction of Four Wheel Mining Wagon UK-5: Hydraulic dump; convenient operation; strong climbing ability; high safety coefficient. Mining exclusive model ≤ 30°...
