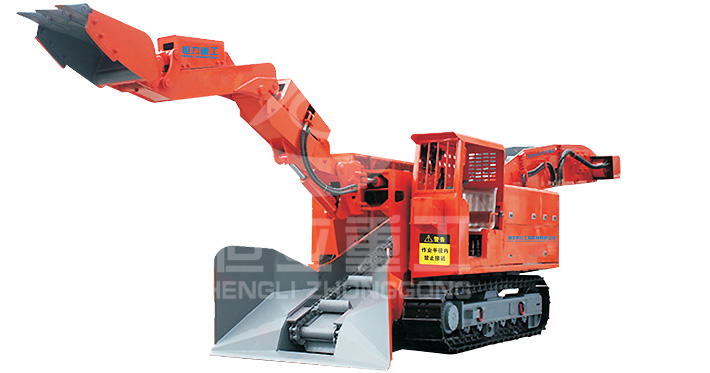

Name: Haggloader, Crawler Mucking Loader LWL- 120 55L
Large gradient special model≤32°
By installing the hydraulic hammer, we can break, repair, and blast the huge rock and coal sheet on the roadway baseplate or on the bottom of the side-panel.
LWL- 120 / 55 L crawler mucking loader is applicable to tunnels with a section of above 2.8X2.8 m and a gradient of ≤32°. The function of crushing can be added to it. The breaking hammer eliminates danger vertically down.
Item |
Unit |
LWL- 120 / 55L |
|
A Grilled get width |
mm |
5400 |
|
B Grilled distance |
mm |
2470 |
|
C Grilled take height |
mm |
3200 |
|
D Grilled to take deep |
mm |
650 |
|
E Unloading height |
mm |
1868 (Can be adjusted) |
|
F Unloading height |
mm |
1600 |
|
G Unloading distance |
mm |
2500 (Can be adjusted) |
|
H Maximun swivel arm |
( º ) |
±55 |
|
Adapt road way lift of section (width × height) |
m |
≥2.8 × 2.8 |
|
Vehicle weight |
kg |
12860 |
|
Load capacity |
m2 h |
≈120 |
|
Walking speed |
km/ h |
2.1 ± 5 % |
|
Adapt to the roadway slope |
( º ) |
≤32 |
|
Minimum turning radius |
m |
≥6 |
|
Rated working pressure |
Mpa |
22 |
|
Minimun clearance |
mm |
≥350 (Can be heightened) |
|
Motor power |
kw |
55 |
|
Leather belt speed |
m/ min |
34 |
|
The form of scraper transport operators |
|
Single chain single drive / double chains double drive |
|
Operating mode |
|
Driven by hydraulic motor |
|
Tracked the inside width |
mm |
1000 (Can be widthened) |
|
Largest mineral aggregate by size (width × height) |
mm |
660 × 570 |
|
Dimension |
Length |
mm |
7600 |
Width |
mm |
2000 |
|
Height |
mm |
2200 |
|
Note: The above-mentioned parameters may change. Please refer to product specifications for the final parameters.
