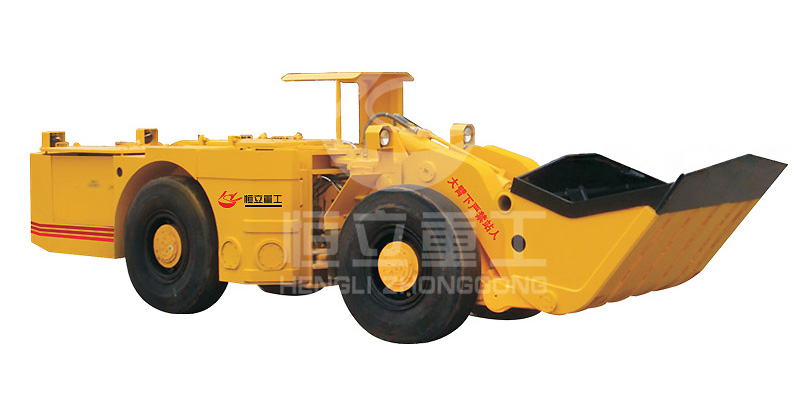

Name: Electric LHD Loader HLWJ2.0
Mining dedicated type≤20°
Intelligent, low tension cable control system minimises cable wear and reduces operational cost.
All of our underground scooptrams have obtained ISO 9001:2008, and safety certification.
Special design and structure like small size, performing long lifespan, big shovel force, lower cost, convenient in operation and maintenance as well.
Electric LHD Loader HLWJ2.0 has the characteristics of four-wheel drive, full-hydraulic steering, three-point articulated in front and rear car body.
Electric LHD Loader HLWJ2.0 is suitable for mining and road way drivage slag, the construction of the road and work place, material transportation and so on.
Index |
Unit |
HLWJ2.0 |
Rated bucket capacity |
m3 |
2.0 |
Rated load capacity |
t |
4 |
Max. shovl force |
kn |
102 |
Maximum tractive force |
kn |
104 |
Maximum discharge height |
mm |
1743 |
Maximum lifting height |
mm |
4218 |
Maximum gradeability |
( º ) |
≤20 |
Minimum turning radius (outside/inside) |
mm |
4800 / 2500 |
Driving speed |
km/ h |
0 ~ 19.4 |
Unloading height |
mm |
1743 |
Car body angle |
(°) |
38 |
Wheelbase |
mm |
2540 |
Overall machine weight |
kg |
16500 |

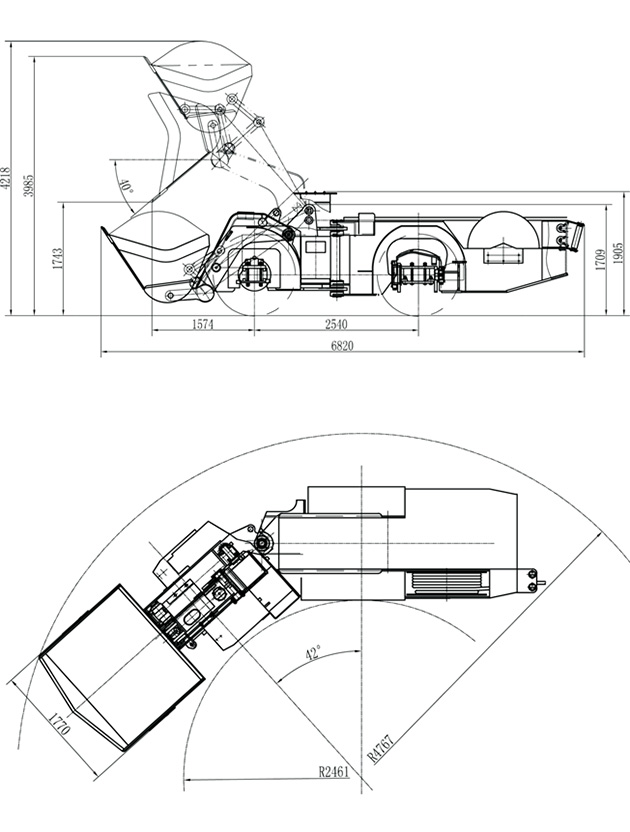

Overall machine dimensions |
mm |
6280 × 1770 × 1905 |
Note: The above-mentioned parameters may change. Please refer to product specifications for the final parameters.
