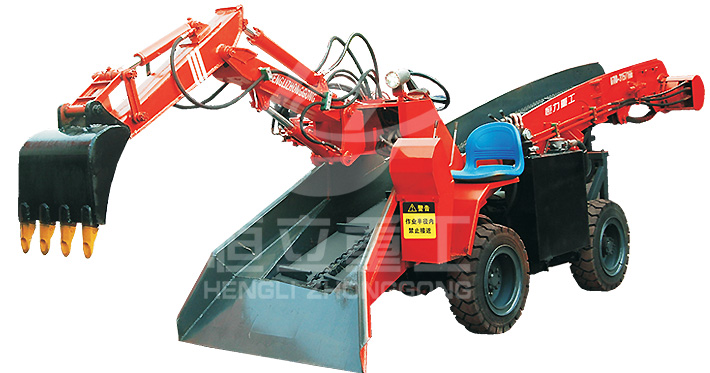

Haggloader, Wheel Haggloader Enhanced Type LWT-80 4Q-CD-GB
Name: Haggloader, Wheel Haggloader Enhanced Type LWT-80 4Q-CD-GB
Model: LWT-80 4Q-CD-GB
Special model of level roadway series ≤15°
Introduction of Wheel Haggloader Enhanced Type LWT-80:
Our another type enhanced wheel mucking loader LWT-80 4Q-CD-GB is applicable to tunnels whose sections are above 2.2 × 2.2 m, with the maximum working gradient of 15°.
Parameters of Wheel Haggloade Enhanced Type LWT- 80:
| Item | Unit | LWT- 80 / 4Q-CD-GB (Enhanced Type) | |
| A Grilled get width | mm | 2750 | |
| B Grilled distance | mm | 1650 | |
| C Grilled take height | mm | 1400 | |
| D Grilled to take deep | mm | 350 | |
| E Unloading height | mm | 1960 (Can be heightened) | |
| F Min. dumping height | mm | 1720 | |
| G Unloading distance | mm | 1700 (Can be lengthened) | |
| H Maximun swivel arm | ( º ) | ±35 | |
| Adapt road way lift of section (width × height) | m | ≥2.2 × 2.2 | |
| Vehicle weight | kg | 4025 | |
| Load capacity | m3/ h | ≈80 | |
| Walking speed | km/h | High speed 5.5 / Low speed 3 | |
| Adapt to the roadway slope | ( º ) | ≤8 | |
| Grade ability | ( º ) | ≤15 (hardstand) | |
| Minimum turning radius | m | 5 | |
| Rated working pressure | Mpa | 12.5 | |
| Minimun clearance | mm | 220 | |
| Motor power | kw | 22 | |
| Wheelbase | mm | 1650 | |
| Wheel distance | mm | 1480 | |
| Largest mineral aggregate by size (width × height) | mm | 600 × 540 | |
| Dimension | Length | mm | 5600 |
| Width | mm | 1700 | |
| Height | mm | 1700 | |
Note: The above parameters are for reference only, and may differ from the actual parameters.
Operation Schematic Diagram:

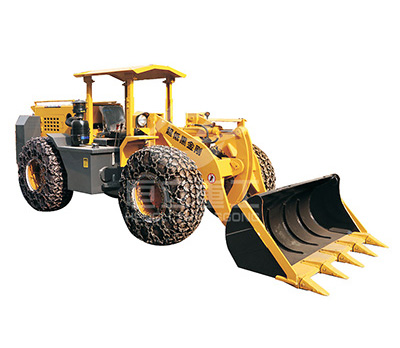

Mining Loader HL926Introduction of Mining Loader HL926: As an important underground mining device, mining loader HL926 is characterized by a large hoisting height, a large dipper capacity, advanced performance, reasonable structure and convenient operation and maintenance. This mining loader can be used to shovel and load loose materials and to carry out short-distance transportation for water conservancy, municipal construction, coal, sand...

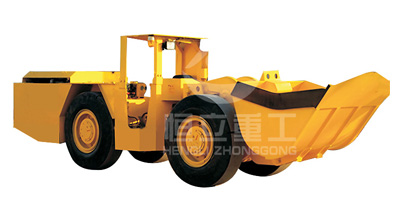

LHD Loader Electrical HLWJ1.0Downhole Electric LHD series is mainly used wells mountains to shovel loose material after blasting transport dominated. This kind of LHD loader can also be used in railway, highway and water conservancy engineering, especially for poor working...
