Haggloader, Crawler Mucking Loader LWL- 80 45L

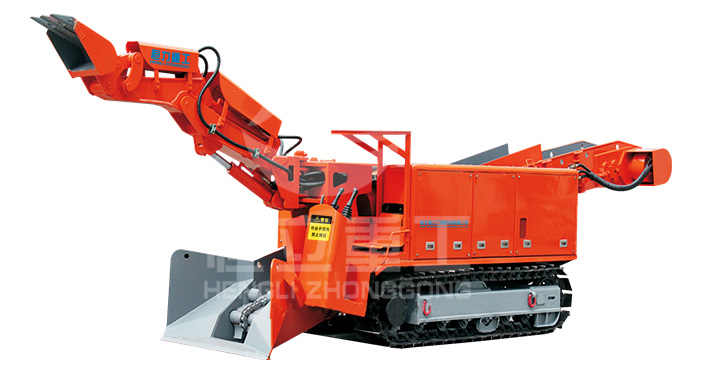

Name: Haggloader, Crawler Mucking Loader LWL- 80 45L
Large gradient special model≤32°
Introduction of Crawler Mucking Loader LWL- 80 45L:
LWL- 80 / 45L crawler mucking loader is applicable to tunnels with a section of above 2.4X2.4 m and a gradient of ≤32°.
Parameters of Wheel Mucking Loader LWT-80 45L:
| Item | Unit | LWL- 80 / 45L | |
| A Grilled get width | mm | 4500 | |
| B Grilled distance | mm | 1750 | |
| C Grilled take height | mm | 2500 | |
| D Grilled to take deep | mm | 500 | |
| E Unloading height | mm | 1550 (Can be adjusted) | |
| F Min. dumping height | mm | 1580 | |
| G Unloading distance | mm | 1700 (Can be adjusted) | |
| H Maximun swivel arm | ( º ) | ±55 | |
| Adapt road way lift of section (width × height) | m | ≥2.4 × 2.4 | |
| Vehicle weight | kg | 11260 | |
| Load capacity | m3/ h | ≈80 | |
| Walking speed | km/h | 0.6±5 % | |
| Adapt to the roadway slope | ( º ) | ≤32 | |
| Minimum turning radius | m | ≥5 | |
| Rated working pressure | Mpa | 22 | |
| Minimun clearance | mm | 310 (Can be heightened) | |
| Motor power | kw | 45 | |
| Leather belt speed | m/ min | 40 | |
| The form of scraper transport operators | Single chain, single drive | ||
| Operating mode | Driven by hydraulic motor | ||
| Tracked the inside width | mm | 950 (Can be widthened) | |
| Largest mineral aggregate by size (width × height) | mm | 580 × 540 | |
| Dimension | Length | mm | 7400 |
| Width | mm | 1750 | |
| Height | mm | 2100 | |
Note: The above-mentioned parameters may change. Please refer to product specifications for the final parameters.
Operation Schematic Diagram:
