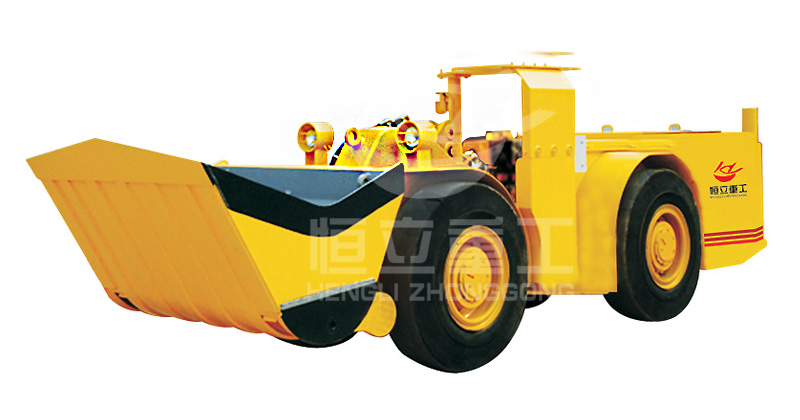

Name: Electric LHD Loader HLWJ3.0
Mining dedicated type≤20°
This 3 cubic meter electric LHD loader(HLWJ3.0) is designed for small-sized operations ranging from construction sites to narrow-vein mining at extreme altitudes.
As one of the main manufacturer of underground mining equipment in China, we also provide a wide range earthmoving and mining equipment, such as: haggloadr, mucking loader, wheel mucking loader, crawler mucking loader, mining loader, underground LHD loader, underground scooptram, underground dump truck, curved rail side dump truck and other customized equipments.
Index |
Unit |
HLWJ1.0 |
Rated bucket capacity |
m3 |
3.0 |
Rated load capacity |
t |
6.0 |
Maximum scooping force |
kn |
132 |
Maximum traction |
kn |
150 |
Maximum unloading height |
mm |
1325 |
Maximum lift height |
( mm ) |
4408 |
Maximum gradeability |
( ° ) |
≤20 |
Minimum turning radius (outside/inside) |
mm |
6100 / 3300 |
Travel speed |
km/ h |
0 ~ 19.4 |
Minimum ground clearance |
mm |
240 |
Maximum steering angle |
(°) |
±40 |
Wheelbase |
mm |
3150 |
Weight |
kg |
17100 |

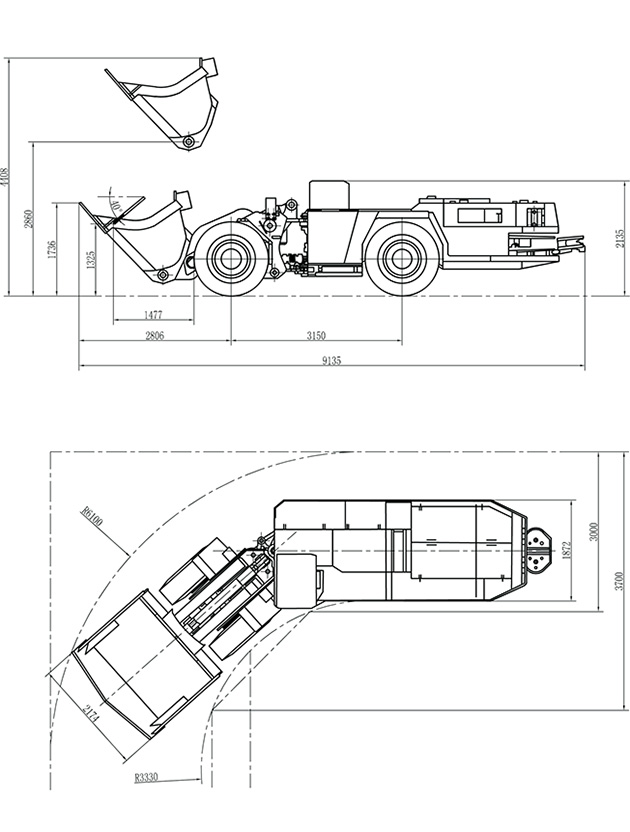

Overall machine dimensions |
mm |
8576 × 2174 × 2135 |
Note: The above-mentioned parameters may change. Please refer to product specifications for the final parameters.
