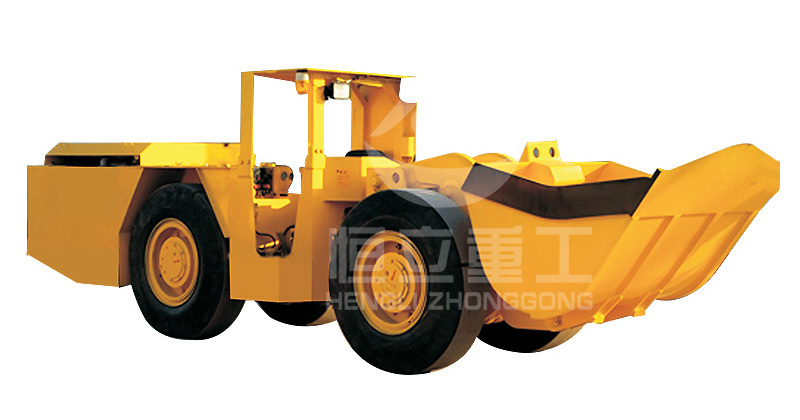

Diesel LHD Loader HLWJD3.0

Name: Diesel LHD Loader HLWJD3.0

Mining dedicated type≤20°

Introduction of Diesel LHD Loader HLWJD3.0:

With CE and ISO certificate.

Adopt 10.00-20 puncture resistant smooth rubber tires.

Great power from Deutz rear mountedengine.

All hydraulic parts from famous name brands.

Improved fuel economy, less fuel with better combustion.

Parameters of Diesel LHD Loader HLWJD3.0:

Index	Unit	HLWJ3.0
Rated bucket capacity	m³	3.0
Rated load capacity	t	6
Max. shovl force	kn	132
Maximum tractive force	kn	150
Maximum discharge height	mm	1325
Maximum lifting height	mm	4408
Maximum gradeability	( º )	≤20
Minimum turning radius (outside/inside)	mm	6100 / 3330
Driving speed	km/ h	0 ~ 10.5
Ground clearance	mm	255
Cable effective length	m	100
Wheelbase	mm	2550
Overall machine weight	kg	17900
Outline dimension	mm	9135 × 2174 × 2135

Note: The above-mentioned parameters may change. Please refer to product specifications for the final parameters.

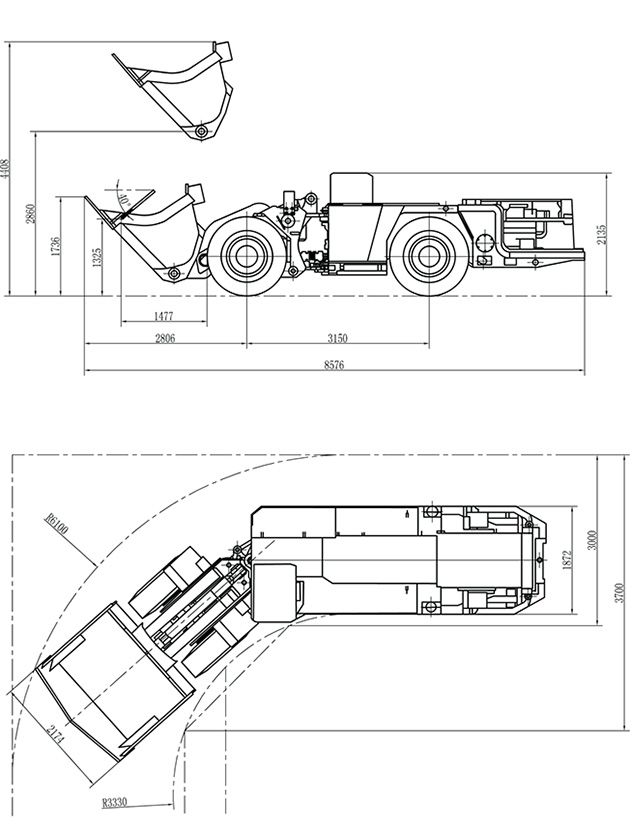

Operation Schematic Diagram:
