Haggloader, Crawler Mucking Loader LWL-60 30L

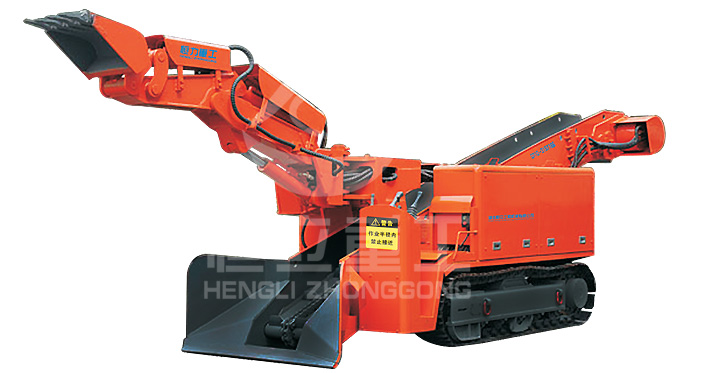

Name: Haggloader, Crawler Mucking Loader LWL-60 30L
Large gradient special model≤32°
Introduction of Crawler Mucking Loader LWL-60 30L:
LWL- 60 / 30L crawler mucking loader is applicable to tunnels with a section of above 2X2 m and a gradient of ≤32°.
Parameters of Crawler Mucking Loader LWL-60 30L:
| Item | Unit | LWL-60 / 30L | |
| A Grilled get width | mm | 3200 | |
| B Grilled distance | mm | 1530 | |
| C Grilled take height | mm | 2300 | |
| D Grilled to take deep | mm | 450 | |
| E Unloading height | mm | 1500 (Can be heightened) | |
| F Min. dumping height | mm | 1580 | |
| G Unloading distance | mm | 1700 (Can be lengthened) | |
| H Maximun swivel arm | ( º ) | ±39 | |
| Adapt road way lift of section (width × height) | m | ≥2.0 × 2.0 | |
| Vehicle weight | kg | 7860 | |
| Load capacity | m3/ h | ≈60 | |
| Walking speed | km/h | 0.25±5 % | |
| Adapt to the roadway slope | ( º ) | ≤32 | |
| Minimum turning radius | m | ≥4 | |
| Rated working pressure | Mpa | 26 | |
| Minimun clearance | mm | 270 (Can be heightened) | |
| Motor power | kw | 30 | |
| Leather belt speed | m/ min | 25 | |
| The form of scraper transport operators | 单链单驱 | ||
| Operating mode | 液控 | ||
| Tracked the inside width | mm | 900 (Can be widthened) | |
| Largest mineral aggregate by size (width × height) | mm | 480 × 520 | |
| Dimension | Length | mm | 6700 |
| Width | mm | 1600 | |
| Height | mm | 1900 | |
Note: The above-mentioned parameters may change. Please refer to product specifications for the final parameters.
