Name: Haggloader, Wheel Mucking Loader Folding Type LWT- 50 4Q- XXX- D- JZ
Special model of level roadway series ≤ 8°
This wheel mucking loader is standard folding type, it can be used for the various mineral aggregate mining, coal, phosphate, iron ore, copper, gold and other mine loading bulk materials as well as water and electricity, railway culvert operations. The working section of tunneling is 1.8×1.8 meter and above. It's power if from a motor and diesel.
Item |
Unit |
LWT- 50 4Q- XXX- D- JZ |
|

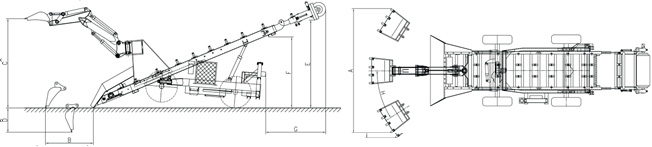

A Grilled get width |
mm |
2900 |
|
B Grilled distance |
mm |
1320 |
|
C Grilled take height |
mm |
1420 |
|
D Grilled to take deep |
mm |
300 |
|
E Unloading height |
mm |
1400 (Can be heightened) |
|
F Unloading height |
mm |
1370 |
|
G Unloading distance |
mm |
1300 (Can be lengthened) |
|
H Maximun swivel arm |
( º ) |
±35 |
|
Adapt road way lift of section (width × height) |
m |
≥1.8 × 1.8 |
|
Vehicle weight |
kg |
2350 |
|
Load capacity |
m2 h |
≈50 |
|
Walking speed |
km/ h |
3 |
|
Adapt to the roadway slope |
( º ) |
≤8 |
|
Gradeability |
Mpa |
≤15 (hardstand) |
|
Minimum turning radius |
m |
3.7 |
|
Rated working pressure |
Mpa |
12.5 |
|
Minimun clearance |
mm |
180 |
|
Motor power |
kw |
15 |
|
Leather belt speed |
m/min |
48 |
|
Wheelbase |
mm |
1140/1100 |
|
Wheel span |
mm |
1500 |
|
Maximum material crossing size |
mm |
500 × 380 |
|
Dimension |
Length |
mm |
4800 ( 3900 ) |
Width |
mm |
1300 |
|
Height |
mm |
1500 |
|
Note: The above-mentioned parameters may change. Please refer to product specifications for the final parameters.
