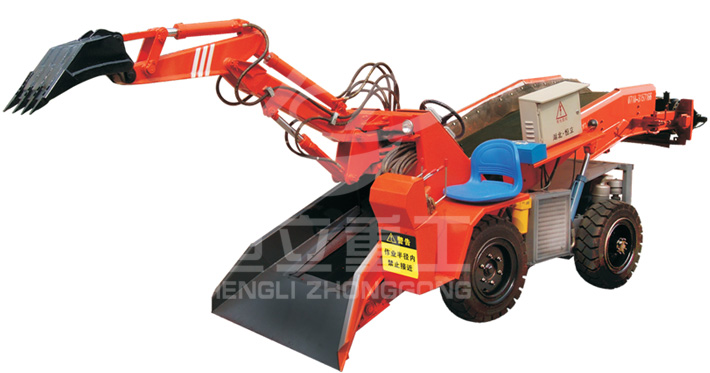

Name: Haggloader, Wheel Mucking Loader Standard Type LWT- 50 / 4Q-XXX-D
Model: LWT- 50 / 4Q-XXX-D
Coal mining dedicated type ≤8°
Wheel excavation loader is a high-efficiency mining device capable of continuous production. It is mainly used for mining operations in narrow caves, e.g. metal mine, diversion tunnel, etc. Its function is to collect the gravel soil of various projects and transport and load it.
LWT-50/4Q standard wheel mucking loader shovels rocks through crawler propulsion and rakes rocks into its own scraper conveyor with a bucket. The conveyor unloads rocks onto a dump automobile, mining wagon and other loading devices from their tail. It can also rake distant rocks with a backhoe excavating arm, and clear the working plane with a bucket. Its applicable sections are tunnels of above 1.8 × 1.8 m. Its power is from a motor and diesel.
| Item | Unit | LWT-50 / 4Q-XXX-D (Standard Type) | |
| Mining width | mm | 2900 | |
| Mining length | mm | 1320 | |
| Mining height | mm | 1420 | |
| Mining depth | mm | 300 | |
| Unloading height | mm | 1400 (Can be heightened) | |
| Min. dumping height | mm | 1370 | |
| Unloading length | mm | 1300 (Can be lengthened) | |
| Maximun swivel arm | ( º ) | ±35 | |
| Adapt road way lift of section | m | ≥1.8 × 1.8 | |
| Vehicle weight | kg | 2350 | |
| Load capacity | m3/ h | ≈50 | |
| Walking speed | km/h | 3 | |
| Adapt to the roadway slope | ( º ) | ≤8 | |
| Grade ability | ( º ) | ≤15 (hardstand) | |
| Minimum turning radius | m | 3.7 | |
| Rated working pressure | Mpa | 12.5 | |
| Minimun clearance | mm | 180 | |
| Motor power | kw | 15 | |
| Leather belt speed | m/min | 48 | |
| Wheelbase | mm | 1140 / 1100 | |
| Wheel distance | mm | 1500 | |
| Largest mineral aggregate by size (Width × Height) | mm | 500 × 380 | |
| Dimension | Length | mm | 4800 |
| Width | mm | 1300 | |
| Height | mm | 1500 | |
Note: The above parameters are for reference only, and may differ from the actual parameters.
