Haggloader, Wheel Mucking Loader LWT-60 / 4Q-XX-CD

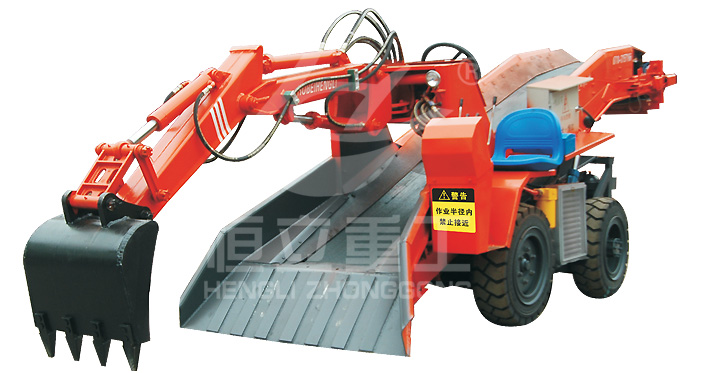

Name: Haggloader, Wheel Mucking Loader Enhanced Type LWT-60 / 4Q-XX-CD
Model: LWT- 60 / 4Q-XX-CD
Special model of level roadway series ≤8°
Introduction of Wheel Mucking Loader Enhanced Type LWT-60:
This enhanced wheel mucking loader is applicable to tunnels whose sections are above 2 × 2 m, with the maximum working gradient of 8°.
This wheel mucking loader uses a production device of electric fully hydraulic control system, characterized by safety, environmental friendliness, low energy consumption and high efficiency. Its working efficiency can replace 30 workers, not only considerably promoting mining efficiency, but also reducing safety loopholes. It is not only an indispensible advanced mining device for mining enterprises, but also a substitute product of labor and other machinery.
Parameters of Wheel Mucking Loader Enhanced Type LWT-60:
| Item | Unit | LWT-60 / 4Q-XX-CD (Enhanced Type) | |
| A Grilled get width | mm | 2800 | |
| B Grilled distance | mm | 1550 | |
| C Grilled take height | mm | 1750 | |
| D Grilled to take deep | mm | 350 | |
| E Unloading height | mm | 1720 (Can be heightened) | |
| F Min. dumping height | mm | 1700 | |
| G Unloading distance | mm | 1600 (Can be lengthened) | |
| H Maximun swivel arm | ( º ) | ±35 | |
| Adapt road way lift of section (width × height) | m | ≥2.0 × 2.2 | |
| Vehicle weight | kg | 3100 | |
| Load capacity | m3/ h | ≈60 | |
| Walking speed | km/h | 3 | |
| Adapt to the roadway slope | ( º ) | ≤8 | |
| Grade ability | ( º ) | ≤15 (hardstand) | |
| Minimum turning radius | m | 4.5 | |
| Rated working pressure | Mpa | 12.5 | |
| Minimun clearance | mm | 220 | |
| Motor power | kw | 15 | |
| Leather belt speed | m/min | 48 | |
| Wheelbase | mm | 1550 | |
| Wheel distance | mm | 1145 | |
| Largest mineral aggregate by size (width × height) | mm | 500 × 490 | |
| Dimension | Length | mm | 5150 |
| Width | mm | 1500 | |
| Height | mm | 1780 | |
Note: The above parameters are for reference only, and may differ from the actual parameters.
Operation Schematic Diagram:
