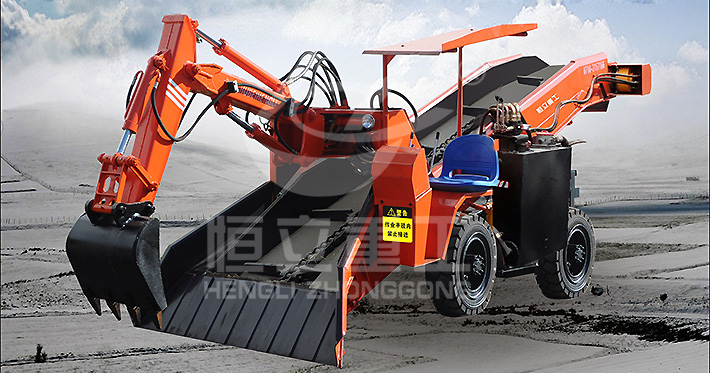

Name: Haggloader, Wheel Mucking Loader with Scraper LWT-60/4Q-XX-CD-G Enhanced Type
60 Reinforced Type 4-drive wheel chain scraper mucking loader
60 Type Crawler Belt Conveyor (Mucking Loader) can be equipped with scrapers
60 Type Crawler Belt Conveyor (Mucking Loader) can be used for mining of various ores with a production and operation space of 2.2 m X2.3 m and above, loading of various mine bulk materials including coal, phosphate, iron, copper and gold ores and the operation of hydropower and railway culverts.
Item |
LWT-60/4Q-XX-CD-G Enhanced Type |
Loading capacity (m2/h) |
≈60 |
Overall machine weight (kg) |
3900 |
Minimum turning radius (m) |
4 |
Mining width (mm) |
2700 |
Mining height (mm) |
1450 |
Mining depth (mm) |
350 |
Mining length (mm) |
1600 |
Unloading height (mm) |
1550 |
Unloading length (mm) |
1650 (Can be heightened) |
Gradeability (°) |
≤18 (Hardstand) |
Leather belt speed (m/min) |
48 |
Driving speed (km/h) |
3 |
Ground clearance (mm) |
180 |
Wheel span (mm) |
1230 |
Wheelbase (mm) |
1550 |
Rated working pressure (Mpa) |
12.5 |
Total power of motor (kw) |
22 |
Maximum material crossing size (mm) |
500x400 |
Suitable tunnel gradient (°) |
≤12 |
Minimum fault surface of suitable tunnel (m) |
2x2 |
Maximum material crossing size (LxWxH/mm) |
5200x1500x1600 |
Note: The above parameters are for reference only, and may differ from the actual parameters.
