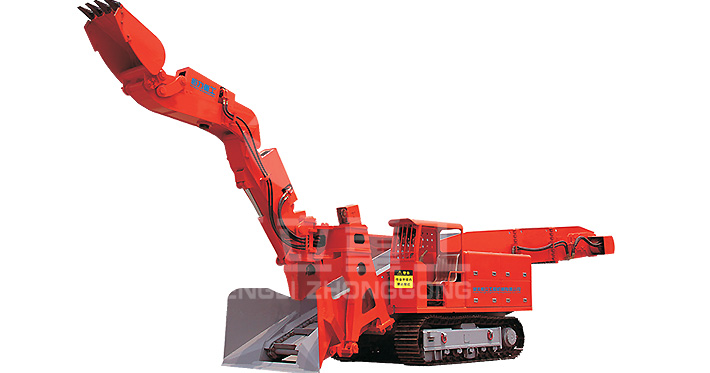

Name: Haggloader, Crawler Mucking Loader LWL- 180 79L
Large gradient special model≤32°
LWL- 180 / 79 L crawler mucking loader is applicable to tunnels with a section of above 3.8X3.8 m and a gradient of ≤32°.
Item |
Unit |
LWL- 180 / 79L |
|
A Grilled get width |
mm |
7030 |
|
B Grilled distance |
mm |
3000 |
|
C Grilled take height |
mm |
4635 |
|
D Grilled to take deep |
mm |
990 |
|
E Unloading height |
mm |
2693 (Can be adjusted) |
|
F Unloading height |
mm |
1970 (Can be adjusted) |
|
G Unloading distance |
mm |
5123 (Can be adjusted) |
|
H Maximun swivel arm |
( º ) |
±55 |
|
Adapt road way lift of section (width × height) |
m |
≥3.8 × 3.8 |
|
Vehicle weight |
kg |
21500 |
|
Load capacity |
m2 h |
≈180 |
|
Walking speed |
km/ h |
2.1 ± 5 % |
|
Adapt to the roadway slope |
( º ) |
≤32 |
|
Minimum turning radius |
m |
≥8 |
|
Rated working pressure |
Mpa |
≤32 |
|
Minimun clearance |
mm |
≥420 (Can be heightened) |
|
Motor power |
kw |
79 |
|
Leather belt speed |
m/ s |
0.54±5 % |
|
The form of scraper transport operators |
|
Single chain single drive / double chains double drive |
|
Operating mode |
|
Driven by hydraulic motor |
|
Tracked the inside width |
mm |
1350 (Can be widthened) |
|
Largest mineral aggregate by size (width × height) |
mm |
780 × 597 |
|
Dimension |
Length |
mm |
14500 |
Width |
mm |
2350 |
|
Height |
mm |
3500 |
|
Note: The above-mentioned parameters may change. Please refer to product specifications for the final parameters.
