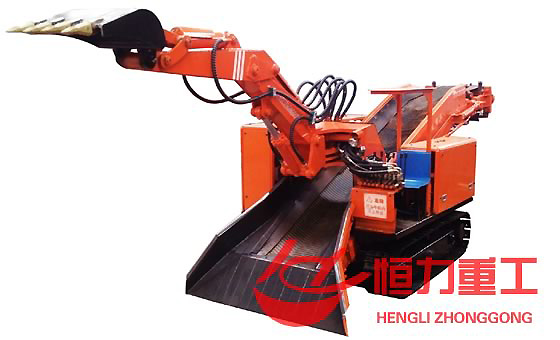

Name: Haggloader, Belt Crawler Mucking Loader LWT- 60
Belt Crawler Mucking Loader 60 Type crawler belt conveyor (Mucking loader) can be used for mining of various ores with a production and operation space of 2.2 m X 2.3 m and above, loading of various mine bulk materials including coal, phosphate, iron, copper and gold ores and the operation of hydropower and railway culverts.
This wheel mucking loader uses a production device of electric fully hydraulic control system, characterized by safety, environmental friendliness, low energy consumption and high efficiency. Its working efficiency can replace 30 workers, not only considerably promoting mining efficiency, but also reducing safety loopholes. It is not only an indispensible advanced mining device for mining enterprises, but also a substitute product of labor and other machinery.
Item |
Unit |
Belt Crawler Mucking Loader LWT- 60 |
|
A Grilled get width |
mm |
2700 |
|
B Grilled distance |
mm |
1300 |
|
C Grilled take height |
mm |
2020 |
|
D Grilled to take deep |
mm |
350 |
|
F Unloading height |
mm |
1750 |
|
G Unloading distance |
mm |
2000 |
|
Vehicle weight |
kg |
3180 |
|
Load capacity |
m2 h |
≈60 |
|
Leather belt speed |
m/ min |
48 |
|
Driving speed |
km/ h |
高速5.5/低速3 |
|
Ground clearance |
mm |
220 |
|
Tracked the inside width |
mm |
1100 |
|
Wheelbase |
mm |
|
|
Rated working pressure |
Mpa |
12.5 |
|
Motor power |
kw |
30 |
|
Adapt to the roadway slope |
( º ) |
≤15 |
|
Gradeability |
Mpa |
≤15 (hardstand) |
|
Minimum turning radius |
m |
5 |
|
Maximum material crossing size |
mm |
600x450 |
|
Minimum fault surface of suitable tunnel |
m |
2.2x2.3 |
|
Dimension |
Length |
mm |
5300 |
Width |
mm |
1700 |
|
Height |
mm |
1700 |
|
Note: The above-mentioned parameters may change. Please refer to product specifications for the final parameters.
