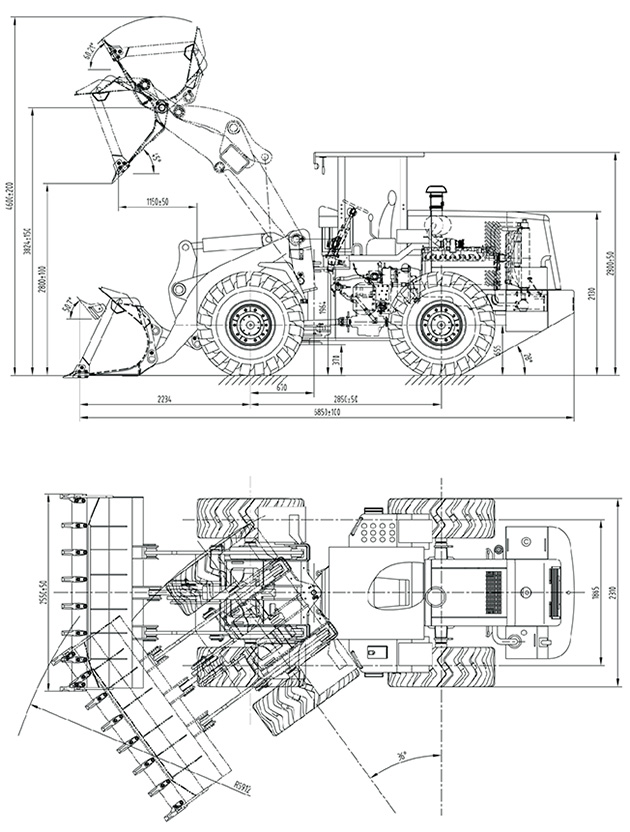

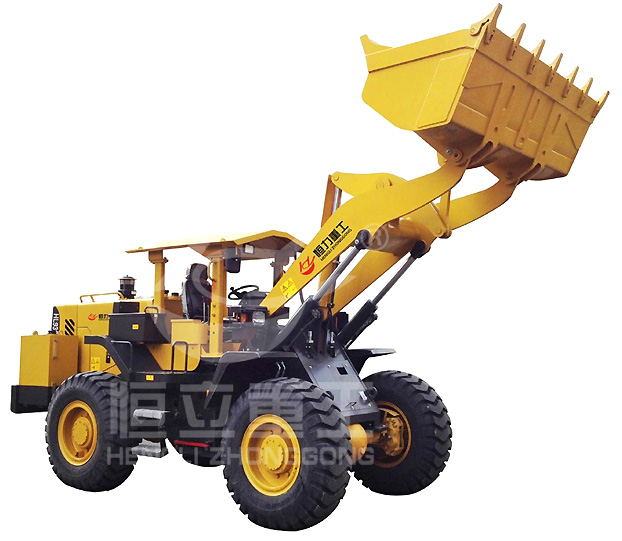

Name: Mining Loader HL936
Mining dedicated type≤30°
The travel system of wheel loader HL936 uses hydraulic gearbox and torque converter, which can produce different torque forces to different degrees of worksites, thus protecting the entire machine. Wheel loader HL936 is widely applied as the earthmoving machine in highways, railways, ports, wharfs, coal, mines, water conservancy, national defense and other projects and urban construction and other sites. It plays an important role in reducing labor intensity, accelerating project construction and improving project quality.
At Hengli China, we professionally supply you with series products of mine loaders we have manufactured meticulously. If you are interested in our products, please get in touch with us freely. We will offer you the most satisfactory service and price at the earliest time.
Item |
Unit |
HL936 |
|
Rated bucket capacity |
m3 |
1.8 |
|
Rated load capacity |
t |
3.0 |
|
Overall machine operating weight |
t |
10.7 |
|
Maximum tractive force |
kn |
105 |
|
Maximum breakout force |
kn |
96 |
|
Unloading height |
mm |
2950 |
|
Unloading length |
mm |
1050 |
|
Ground clearance |
mm |
370 |
|
Maximum lifting height |
mm |
4775 |
|
Car body angle |
(°) |
38 |
|
Maximum gradeability |
(°) |
30 |
|
Driving speed |
km/h |
0-38 |
|
System pressure |
mpa |
16 |
|
Outline dimension (length × width × height) |
mm |
6850 × 2510 × 2900 |
|
Note: The above-mentioned parameters may change. Please refer to product specifications for the final parameters.
