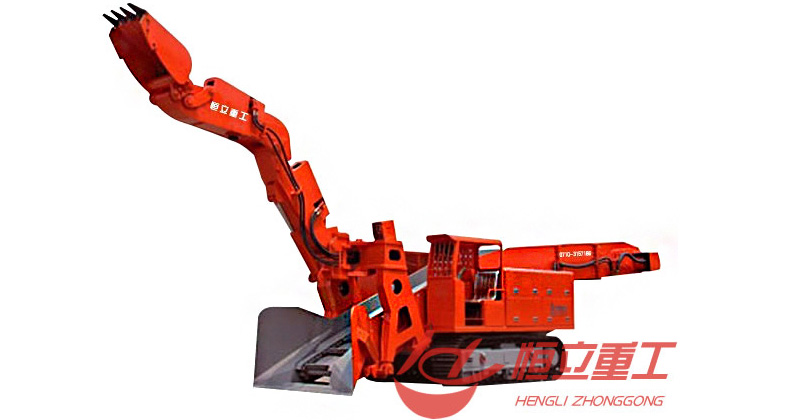

Name: Haggloader, Big Slope Crawler Mucking Loader ZWL- 220 75L
Large gradient special model≤32°
LWL- 220 / 75L crawler mucking loader is an excavation loader with the largest loading capacity in China at present, with a loading capacity of up to 220 cubic meters per hour. Our company uses many domestic and overseas techniques and innovative process technology for this mucking loader, with a high rock-loading efficiency and a stable performance. It can be used in oblique tunnels with a gradient of less than 32°.
The mucking loader is a good helper for mining. Our company has already acquired the marks from Coal Safety and the Mine Safety bureaus. Customers can use it safely and securely.
Item |
Unit |
ZWL- 220 / 75L |
|
A Grilled get width |
mm |
8550 |
|
B Grilled distance |
mm |
1120 |
|
C Grilled take height |
mm |
4950 |
|
D Grilled to take deep |
mm |
700 |
|
E Unloading height |
mm |
2100 ~ 2750 |
|
G Unloading distance |
mm |
5500 (Can be adjusted) |
|
H Maximun swivel arm |
( º ) |
±55 |
|
Adapt road way lift of section (width × height) |
m |
≥4 × 4 |
|
Vehicle weight |
kg |
23800 |
|
Load capacity |
m2 h |
≈220 |
|
Walking speed |
km/ h |
2.1 ± 5 % |
|
Adapt to the roadway slope |
( º ) |
≤32 |
|
Minimum turning radius |
m |
8 |
|
Rated working pressure |
Mpa |
≤32 |
|
Minimun clearance |
mm |
≤ 420 (Can be heightened) |
|
Motor power |
kw |
75 |
|
Leather belt speed |
m/ s |
44 |
|
The form of scraper transport operators |
|
Double chains, dual drive |
|
Tracked the inside width |
mm |
1440 (Can be widthened) |
|
Largest mineral aggregate by size (width × height) |
mm |
820 × 990 |
|
Dimension |
Length |
mm |
15300 |
Width |
mm |
2470 |
|
Height |
mm |
3700 |
|
Note: The above-mentioned parameters may change. Please refer to product specifications for the final parameters.
