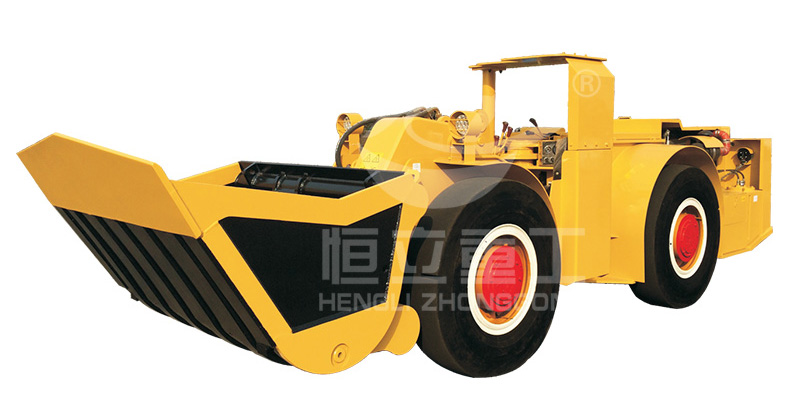

Name: Diesel LHD loader HLWJD2.0
Mining dedicated type≤20°
Underground Diesel LHD loader HLWJD2.0 adopts German original DEUTZ engine with low emissions, low pollution.
Original imported main pump and motor guarantee the quality of the Hydraulic system.
The scooptram adopts the advanced way of three-point suspension articulated, which changes the old models' layout form of oscillating axle.
This diesel LHD loader has overcome the defects of oscillating axle's high failure rate, maintenance troubles, hidden dangers, greatly reduced the investment of manpower and material resources.
Our LHD Underground Loader HLWJD2.0 is suitable for mining and roadway drivage slag, the construction of the road and work place, material transportation and so on.

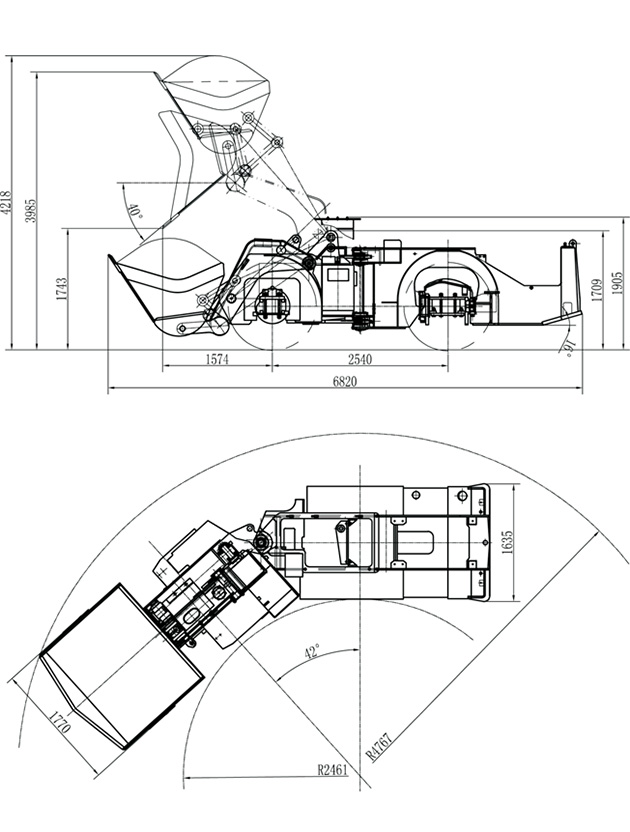

Index |
Unit |
HLWJ2.0 |
Rated bucket capacity |
m3 |
2.0 |
Rated load capacity |
t |
4 |
Max. shovl force |
kn |
102 |
Maximum tractive force |
kn |
104 |
Maximum discharge height |
mm |
1743 |
Maximum lifting height |
mm |
4218 |
Maximum gradeability |
( º ) |
≤20 |
Minimum turning radius (outside/inside) |
mm |
4767 / 2461 |
Driving speed |
km/ h |
0 ~ 11.3 |
Ground clearance |
mm |
250 |
Cable effective length |
m |
100 |
Wheelbase |
mm |
2540 |
Overall machine weight |
kg |
12500 |
Outline dimension |
mm |
6280 × 1770 × 1905 |
Note: The above-mentioned parameters may change. Please refer to product specifications for the final parameters.
