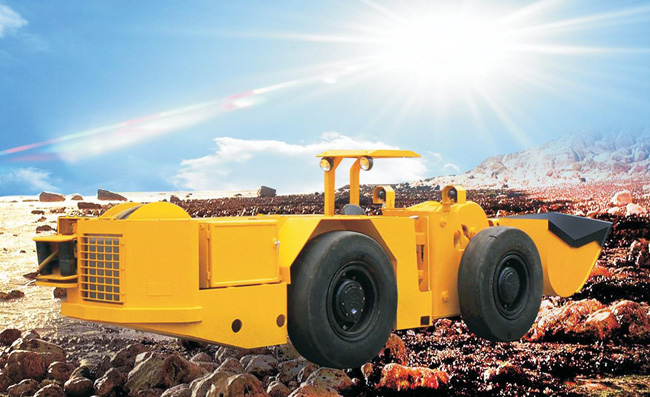

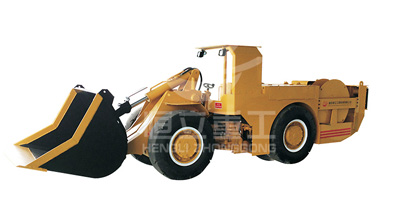

Hengli is a specialized manufacturer of underground scooptrams. Our underground scooptrams include two series: electric scooptrams and internal combustion scooptrams, with a reliable quality, very popular with domestic and overseas customers.
Welcome to click the product link of our webpage to obtain more detailed information. You can also send an Email to us to or leave message on the webpage, and we will get in touch with you at the earliest time.

Our underground scooptrams are mainly applied underground to shovel, load and transport post-explosion loose materials, and are also applied in railway, highway and other tunnel projects. It is particularly applicable to working planes with a poor working condition and a narrow, low and muddy worksite.

As a specialized manufacture of mining devices, Hengli not only manufactures underground scooptrams, but also supplies such engineering machinery as mining loader, wheel mucking loader, big-slope crawler mucking loader and underground dump truck. Our products are spread all over China and sold all over the world. We are one of the Word 500 top enterprises.

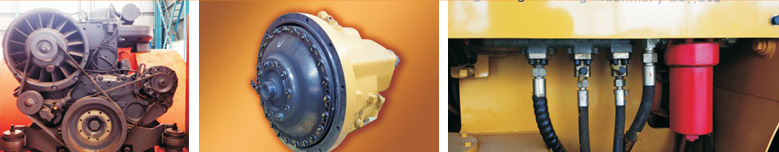

Power system of this machine is driven by AC 380V and 45kW motor.

Hydraulic variable pump-variable motor-transmission gearbox-front and rear axles-driven by 4 rubber tyres.

Rotary bearing is connected with rear frame for swing. Cable rolling system is under control by hydraulic rolling valve to realize stable cable rolling pressure.

Special scraper cable is adopted to feature abrasion and pulling resistance. Working system is in operation under leading hydraulic control, facilitating easier and efficient scraper operation and lowering fault rate.

Emergency and parking brake adopts closed friction plate brake to conduct spring braking and release braking by hydraulic pressure, and braking will be actuated immediately in case of sudden power outage to ensure safety and reliability.)

This machine travels by cut-resistant smooth rubber tyres with front and rear axles driven simultaneously and under middle articulated steering; front bucket and front-dump underground roadway ore loading and transport equipment are applicable to stoping ore withdrawal and deslagging during roadway tunneling by stope caving method, open stope method, room-and-pillar method, shrinkage method, layered filling method, etc., can realize integrated operation of shoveling, loading, transportation and unloading, and feature advantages of compact structure, flexible, stepless speed control during driving, no exhaust gas pollution, etc.
